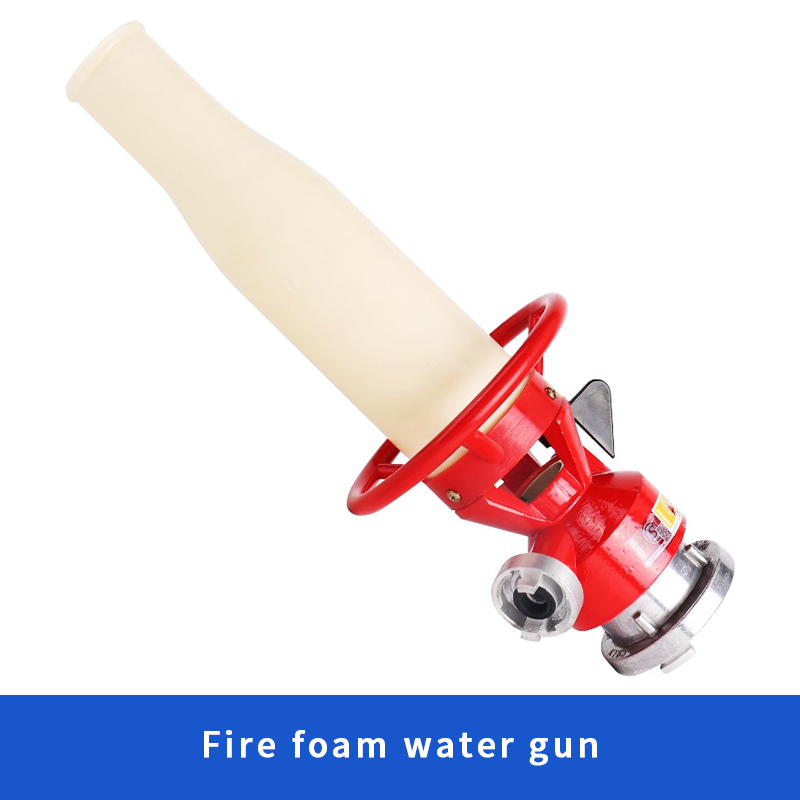

Fire foam water gun

Product Information

name:

Fire foam water gun

structure:

Gun barrel, hand wheel, gun body, ball valve, liquid suction tube and pipe thread interface

Features:

Good sealing, convenient and flexible installation, corrosion resistance, wide coverage, etc.

Scope of application:

Fire fighting, emergency rescue, micro fire station, etc.

Model Introduction

Specifications

Mixed liquid flow(L/S)

Work Pressure(Mpa)

Tube thread interface

Range(M)

PQ4

4

0.7

KY65

24

PQ8

8

0.7

KY65

28

PQ16

16

0.7

KY65

32

Features:

Rugged

Leak-proof

Not afraid of high temperatures

Flexible connection

Strict material selection

Worry-free inspection

Product details

1. Aluminum alloy main body, reliable material, reliable quality

The main body is made of aluminum alloy casting, strong and durable, the overall material is reliable, and the quality is trustworthy

2. Stable performance, your fire extinguishing expert

Strict quality inspection, multiple procedures, strict inspection by professionals, novel structure, stable and reliable performance

3. Wide coverage, good quality, excellent material

Rich and delicate foam, wide coverage, significant fire extinguishing effect, safe and reliable use, long service life

How to use

1) The foam gun can be used when the fire system supplies 3% or 6% of various types of foam mixtures; at this time, the ball valve should be closed.

2) The foam gun can also be used to self-prime foam liquid when the fire system supplies pressurized water: at this time, the ball valve should be fully opened.

3) The foam gun is equipped with a circular handwheel that is easy to operate and protects the gun. When using it, the operator should hold the handwheel of the gun; at the same time, it should be noted that the pressure of the water or mixture supplied to the gun should be gradually increased, but it should not exceed the operating pressure range;

4) In order to avoid sudden impact or excessive pressure causing harm to the operator, try to spray in the direction of the wind.
